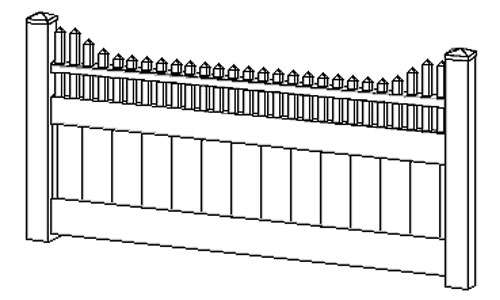

Montauk Point Step Vinyl Privacy Fence
| Standard Height Options: | 48″, 60″, 72″, 84″, and 96″ |
| Post Spacing Options: | 8′ center-to-center (96″ High – 75″ center-to-center) (Notice – Posts must be exactly centered to allow for expansion.) |
| Suggested Post Dimensions: | 48″ High Fence = 5″ x 5″ x 72″ 60″ High Fence = 5″ x 5″ x 96″ 72″ High Fence = 5″ x 5″ x 108″ 84″ High Fence = 5″ x 5″ x 120″ 96″ High Fence = 5″ x 5″ x 144″ |
| Standard Post Depth: | 48″ High Fence = 36″ Post Depth 60″ High Fence = 36″ Post Depth 72″ High Fence = 36″ Post Depth 84″ High Fence = 36″ Post Depth 96″ High Fence = 48″ Post Depth (Local conditions may require additional depth.) |
| Horizontal Dimensions: | 2″ Thick x 7″ Wide (Bottom) 2″ Thick x 7″ Wide (Middle) 2″ Thick x 3 1/2″ Wide (Top) |
| Pickets (Verticals) Dimensions: | 7/8″ Thick x 7″ Wide (Bottom) 1 1/2″ Thick x 1 1/2″ Wide (Top) |
| Ground Clearance: | 1.5″ (Grade variations will cause inconsistent ground clearance measurements.) |
| Bill of Materials may differ in some areas |
